Troubleshooting a Rechargeable Disposable That Won't Charge

Troubleshooting a Rechargeable Disposable That Won't Charge

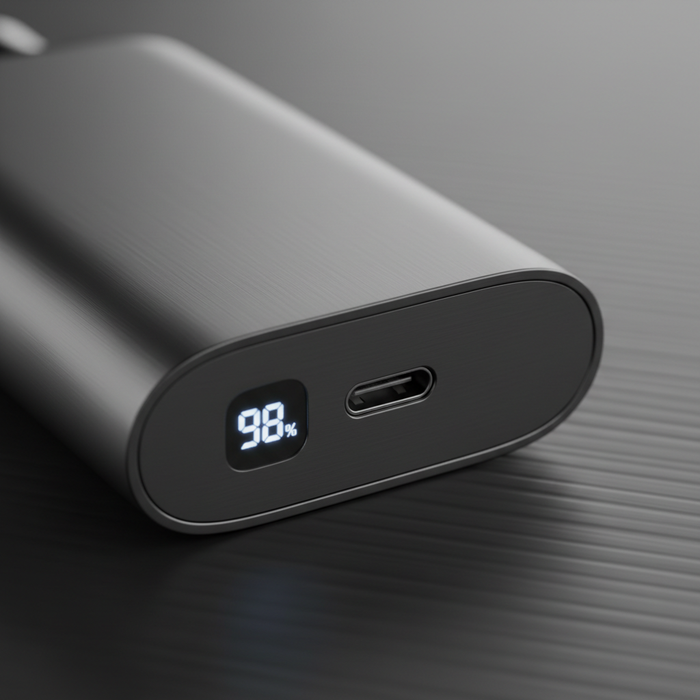

The evolution of the electronic nicotine delivery system (ENDS) market has shifted significantly toward high-capacity, rechargeable disposable devices. As documented in the ENDS Industry Whitepaper 2026: Compliance, Costs, True Puff & Market Shifts, the integration of USB-C charging ports into disposable hardware has allowed manufacturers to offer higher puff counts while maintaining a compact form factor. However, this technical complexity introduces new failure modes. When a device fails to respond to a power source, it is rarely a sign of a "dead" battery; rather, it is typically a result of mechanical obstruction, electrical mismatch, or the activation of internal safety protocols.

Quick Start: Key Takeaways

• Port Hygiene: Approximately 70% to 80% of charging failures in high-capacity disposables are caused by debris or e-liquid residue inside the charging port, preventing electrical contact.
• Cable Specifications: Many modern devices require a minimum of 5V/1A to initiate the charging cycle. Low-output "trickle" cables or damaged chargers often fail to trigger the internal charging circuit.
• Thermal Protection: Internal safety sensors typically block charging if the device temperature is below 0°C (32°F) or above 45°C (113°F).
• The 15-Minute Rule: If a device shows no indicator light after 15 minutes of being connected to a verified power source, the battery protection circuit has likely permanently disabled the cell due to deep discharge.
• Safety First: Never attempt to charge a device that is physically swollen, leaking fluid, or emitting a strong chemical odor, as these are signs of internal lithium-ion degradation.

The Anatomy of a Charging Failure: Physical Obstructions

Technical analysis of returned hardware suggests that the most frequent barrier to charging is not electrical, but mechanical. Because disposable devices are often carried in pockets or bags, the USB-C or Micro-USB port acts as a collector for lint, dust, and microscopic debris.

When pocket lint combines with the unavoidable "weeping" of e-liquid—a common occurrence in high-puff devices where large reservoirs of liquid sit near the battery—it creates an insulating paste. This layer coats the gold-plated pins of the charging port, preventing the completion of the circuit.

Perceptual Explanation: The Insulating Layer

Logic Summary: This explanation is a conceptual illustration based on technical support observations and return handling patterns. It describes common mechanical interference rather than a controlled laboratory measurement.

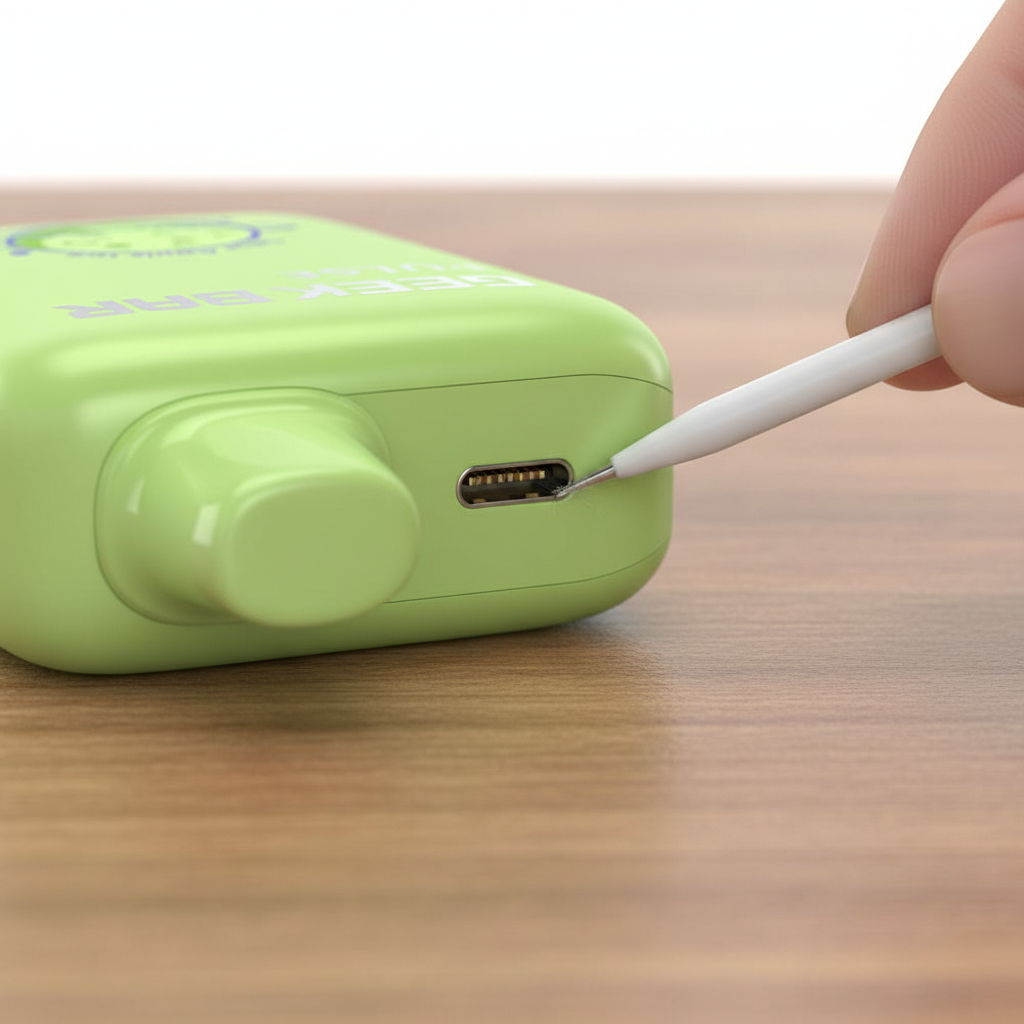

To address this, industry practitioners often recommend a non-conductive cleaning method. Using a plastic toothpick or a fine-bristled brush dampened with a small amount of high-percentage isopropyl alcohol can often restore the connection. Metal tools should be avoided as they can bridge the pins and cause a short-circuit.

Electrical Requirements and Cable Compatibility

A common misconception among users is that any USB-C cable will charge any disposable device. However, the internal Battery Management System (BMS) in modern disposables is programmed with specific voltage and current thresholds.

According to technical specifications for lithium-ion batteries used in ENDS, a stable input of 5V is standard, but the amperage requirement can vary. Many high-capacity devices are designed to draw 1A or more to ensure the 500mAh to 900mAh batteries reach full capacity within an hour. If a user utilizes a legacy USB port (such as those found on older computers) that only outputs 0.5A, the device’s protection circuit may not recognize the power source as sufficient to initiate a charge.

Furthermore, the quality of the cable itself is a critical variable. Industry research into USB-C cable safety and power delivery indicates that low-quality cables often suffer from significant voltage drops. If the voltage at the device end falls below 4.5V due to cable resistance, the charging cycle will fail to start.

Technical Heuristic: The 5V/1A Baseline

• Rule of Thumb: Always use the cable provided with the device or a high-quality third-party cable rated for at least 10W.
• Verification: If a device won't charge, test it with a wall adapter rather than a laptop port to ensure a consistent 1A output.
• Why it matters: Consistent amperage prevents the battery from "cycling" (constantly starting and stopping the charge), which can reduce the overall lifespan of the lithium-ion cell.

Environmental and Thermal Safeguards

Lithium-ion batteries are highly sensitive to ambient temperatures. Most rechargeable disposables incorporate a thermistor—a temperature-sensitive resistor—that communicates with the charging chip.

If a device is left in a vehicle overnight in winter or on a dashboard in summer, these thermal protections will trigger. According to the ISO standards for vaping products, safety mechanisms are essential to prevent thermal runaway. Charging a battery that is too cold can lead to "lithium plating," which causes internal shorts. Charging a battery that is too hot can lead to gas buildup and potential venting.

Observed Thermal Boundaries:

• Lower Limit: < 0°C (32°F). The device will likely blink or show no light.
• Upper Limit: > 45°C (113°F). The device will shut down to protect the chemical stability of the electrolyte.

If a device has been exposed to temperature extremes, it must be allowed to reach room temperature (approximately 20°C to 25°C) for at least 30 minutes before attempting to charge. This is a common requirement for maintaining the shelf life of high-capacity disposables.

The Battery Protection Circuit: Deep Discharge and "Sleep" Mode

When a disposable device is used until it "dies" (indicated by a blinking light during a puff), the battery has reached its cut-off voltage, typically around 3.2V to 3.3V. If the device is then left uncharged for several days, the battery undergoes "self-discharge."

If the voltage drops below approximately 2.5V, the battery enters a state of deep discharge. At this point, the internal protection circuit may disconnect the battery from the charging port entirely to prevent the risk of charging a compromised cell. Research published in PubMed/NCBI highlights that attempting to force-charge a deeply discharged lithium-ion cell can lead to permanent damage or safety hazards.

The 15-Minute Diagnostic

Industry observations from customer support logs suggest a standard diagnostic window. When a deeply discharged device is plugged in:

1. The protection circuit may take 10 to 15 minutes to "wake up" and perform a safety check.
2. During this time, the indicator light may remain off.
3. If, after 15 minutes of being connected to a verified 5V/2A power source, there is still no indicator light, the device has likely reached a state of permanent failure.

This mechanism is designed to prioritize safety over device longevity, ensuring that a potentially unstable battery is never subjected to a high-current charge. For more on the internal components that govern this behavior, see our guide on what’s inside a disposable.

Practical Troubleshooting Checklist

Before assuming a device is defective, technical experts recommend following this systematic approach:

1. Visual Inspection: Check the port for compressed lint or sticky residue.
2. The "Click" Test: Ensure the USB-C cable "clicks" firmly into place. If it feels mushy or loose, there is likely debris in the port.
3. Power Source Swap: Move from a computer USB port to a dedicated wall adapter (avoid "fast chargers" meant for laptops, as some older vape chips may not negotiate the higher voltage correctly).
4. Cable Swap: Use a cable known to work with a smartphone or another electronic device.
5. Temperature Reset: Ensure the device has been at room temperature for at least 30 minutes.
6. The 30-Minute Attempt: Leave the device plugged in for a full 30 minutes. In some cases, a "trickle charge" phase is required to bring the voltage back to a level where the main charging indicator can activate.

Safety Boundaries and When to Stop

While troubleshooting can resolve most issues, there are clear indicators that a device should no longer be used or charged. These boundaries are aligned with general technical use and safety guides for ENDS products.

• Heat Generation: If the device becomes uncomfortably hot to the touch during charging, disconnect it immediately.
• Physical Deformation: Any swelling of the outer casing suggests the battery has off-gassed, a sign of internal failure.
• Leakage: If e-liquid has entered the battery compartment, it can cause corrosion on the charging board, making it a fire risk.
• Odor: A sweet, pungent, or metallic smell coming from the charging port indicates a chemical leak or a burnt component.

When a device reaches the end of its functional life—either through total puff depletion or battery failure—it should be disposed of at a dedicated e-waste or battery recycling center. Lithium-ion batteries should never be placed in standard trash or recycling bins due to the risk of fire in waste processing facilities.

Summary of Charging Logic

Conceptual Illustration: This table summarizes the logic used by most internal Battery Management Systems (BMS) to decide whether to accept a charge.

YMYL Disclaimer: This article is for informational and educational purposes only. Vaping products contain nicotine, which is a highly addictive substance. The technical advice provided here is intended for troubleshooting common electronic issues and does not constitute medical advice or a guarantee of device safety. Individuals with pre-existing cardiovascular or respiratory conditions, and those who are pregnant or nursing, should avoid the use of nicotine products. If you experience any physical symptoms or safety concerns while using or charging a device, discontinue use immediately and consult a qualified professional.
