Why High Puff Count Devices Require a Rechargeable Port

The landscape of disposable electronic nicotine delivery systems (ENDS) has undergone a significant structural shift. In the early stages of the market, disposable devices were characterized by low e-liquid volumes and single-use batteries designed to be depleted simultaneously. However, as consumer demand moved toward high-capacity devices—often rated for 10,000 to 30,000 puffs—the fundamental physics of energy density necessitated a move toward integrated rechargeable ports.

This article examines the technical balance between e-liquid reservoirs and battery capacity, the engineering challenges of power management in extended-use hardware, and the safety protocols governing modern high-puff devices.

Quick Start: Key Takeaways

• Energy Density Constraints: Lithium-ion batteries of a pocketable size cannot hold enough raw energy to vaporize the 15ml to 30ml of e-liquid found in high-puff devices in a single discharge cycle.
• The Recharging Heuristic: Industry observations suggest a ratio of approximately 1mAh of battery capacity per 25–30 puffs is required for consistent performance.
• Voltage Stability: Integrated charging allows devices to maintain a consistent voltage output, preventing the "flavor drop-off" common in non-rechargeable legacy hardware.
• Operational Reality: A typical 15,000-puff device with a 650mAh battery generally requires 3 to 5 recharge cycles to fully atomize the internal e-liquid reservoir.
• Safety Standards: Modern devices utilize USB-C architecture to support standardized charging protocols, including automatic cut-offs at 4.2V and temperature monitoring.

The Physics of the "Energy-to-Liquid" Gap

The primary driver for the inclusion of a charging port in high-puff devices is the limitation of lithium-ion energy density. In smaller, legacy disposables (typically 300–600 puffs), a 280mAh battery was sufficient to vaporize roughly 1.5ml to 2ml of e-liquid. As manufacturers increased e-liquid reservoirs to accommodate 15ml or more, the battery size required to vaporize that volume in one go would have rendered the device too large for portable use.

The mAh-to-Puff Ratio

Technical analysis of energy consumption in modern ENDS hardware indicates that the average draw consumes between 0.2mAh and 0.3mAh per puff.

Methodology Note: Conceptual Illustration This calculation is a conceptual illustration based on standard industry heuristics and observed energy consumption patterns. It assumes a standard coil resistance of 1.0Ω to 1.2Ω and an average puff duration of 1.5 to 2.0 seconds. Actual energy consumption may vary based on user behavior and specific hardware configurations.

As shown in the table above, a device rated for 15,000 puffs cannot physically reach its marketed limit on a single charge of a 650mAh battery. Without a rechargeable port, the battery would deplete while approximately 80% of the e-liquid remained in the reservoir, leading to significant waste and consumer dissatisfaction.

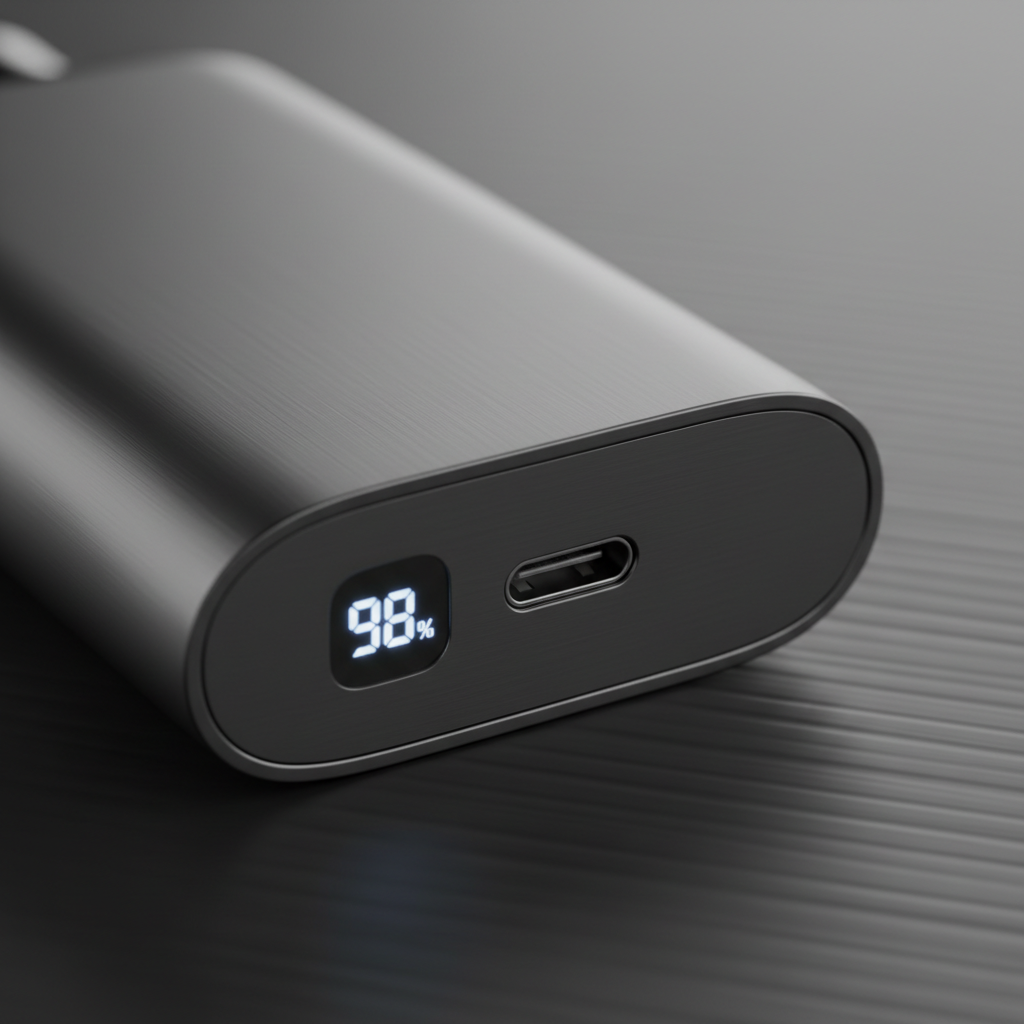

The Evolution of USB-C and Power Management

The transition to USB-C charging was not merely a matter of convenience or following consumer electronics trends. According to technical assessments of hardware longevity, rechargeable ports extended the functional lifespan of disposable hardware by 3 to 4 times compared to single-use equivalents.

Solving the Voltage Drop-Off

In non-rechargeable devices, the battery voltage steadily declines as the cell depletes. This results in a "sag" in power delivery to the coil, which directly impacts the temperature of the aerosol and the consistency of the sensory experience. By utilizing a rechargeable system, manufacturers can implement more sophisticated power management circuits.

These circuits are designed to maintain a consistent output throughout 80% to 90% of the liquid capacity. When the battery voltage drops below a functional threshold (typically around 3.3V to 3.4V), the user recharges the device, returning the cell to its peak voltage (4.2V). This ensures that the final puffs of a 20,000-puff device are technically similar in aerosol density to the first.

Engineering Challenges in Charging Circuits

Integrating a charging port introduces new complexities into the Printed Circuit Board (PCB) design. Unlike traditional rechargeable "mods," high-puff disposables must balance cost-efficiency with safety. Key features now standard in reputable high-puff hardware include:

1. Overcharge Protection: Automatic cut-off when the cell reaches 4.2V to prevent thermal runaway.
2. Short-Circuit Protection: Disabling the output if the coil or charging port detects an electrical fault.
3. Temperature Monitoring: Throttling or stopping the charge if the battery temperature exceeds safe operational limits (typically 45°C during charging).

Market Structure and Regulatory Context

The shift toward rechargeable disposables has also been influenced by the broader regulatory environment. According to the FDA - Authorized ENDS Products List, the agency maintains strict oversight over the marketing and distribution of all ENDS products.

As noted in the ENDS Industry Whitepaper 2026: Compliance, Costs, True Puff & Market Shifts, the industry has seen a consolidation of high-capacity devices as manufacturers seek to provide better value-per-milliliter while navigating complex Premarket Tobacco Product Application (PMTA) requirements. The move to rechargeable ports is a technical adaptation to these market pressures, allowing for larger reservoirs that meet consumer demand for longevity.

Safety Boundaries and Operational Best Practices

While rechargeable ports solve the energy density problem, they require users to adhere to specific safety boundaries to ensure the hardware functions as intended.

Proper Charging Protocol

Industry literature commonly recommends using low-output power sources (such as a laptop USB port or a 5V/1A wall adapter) rather than high-wattage fast chargers designed for smartphones. High-amperage charging can generate excessive heat in the small lithium-ion cells used in disposables, potentially degrading the battery's chemistry or damaging the integrated charging circuit.

Environmental Impact and E-Waste

The inclusion of charging circuitry—including PCBs, integrated circuits, and USB ports—increases the complexity of e-waste. Research into the environmental impact of ENDS suggests that adding these components increases e-waste complexity by approximately 40% to 60% compared to simpler single-use devices. Users are encouraged to utilize dedicated battery recycling programs rather than disposing of these devices in municipal waste streams, as the lithium-ion cells remain a fire risk if crushed in refuse trucks.

Common Usage Patterns and Perceptual Variability

Observations from technical support and consumer feedback indicate that "puff counts" are not absolute measurements but rather perceptual estimates based on specific testing conditions.

Scenario A: The Standard Usage Pattern

In a standard usage scenario, a user taking 1.5-second draws will find that the battery and liquid deplete in a relatively predictable ratio. For a 10,000-puff device, the user might expect to recharge the device 2 to 3 times over the course of its life.

Scenario B: The High-Intensity Pattern

Users who take longer, more frequent draws (3 seconds or more) will consume e-liquid and battery energy at a significantly higher rate. In these cases, the "puff count" may appear lower than the marketed rating, and the device may require more frequent recharging to maintain aerosol temperature. This variability is documented in Understanding Puff Counts in Disposable Devices.

Technical Summary Checklist

For those managing high-capacity hardware, the following checklist summarizes the operational reality of rechargeable disposables:

• Recharge Frequency: Expect to recharge every 2,000 to 3,000 puffs depending on battery mAh.
• Charging Hardware: Use a standard USB-C cable and a low-voltage power source.
• Indicator Lights: Most devices use a pulsing LED or a digital screen to indicate charging status; always wait for the light to change or turn off before use.
• Flavor Monitoring: If the flavor becomes "thin" or the vapor production drops, it is usually a sign that the battery voltage is low, not that the e-liquid is empty.
• End-of-Life: A burnt taste that persists after a full charge indicates the e-liquid reservoir is depleted, and the device should be recycled.

The integration of rechargeable ports in high-puff devices represents a necessary evolution in ENDS engineering. By addressing the physical limitations of battery capacity, manufacturers have created hardware that can effectively deliver large volumes of e-liquid while maintaining a compact, portable form factor. Understanding the technical mechanisms behind these devices—from energy density to charging safety—is essential for any user seeking to understand the modern high-capacity market.

YMYL Disclaimer: This article is for informational purposes only and does not constitute medical, health, or legal advice. Nicotine is an addictive chemical. Electronic nicotine delivery systems (ENDS) are intended for use by adults of legal smoking age. Individuals with pre-existing cardiovascular or respiratory conditions, as well as those who are pregnant or nursing, should avoid the use of nicotine-containing products. Consult a qualified healthcare professional regarding any health-related concerns or for assistance with nicotine dependence.
